Jump Hosts, Admin Workstations, and the Azure Bastion Service

The term bastion host is a reminiscence of medieval fortifications and everyday IT slang since long before clouds became relevant. A bastion host is a server with high exposure to external attacks and, thus, specifically secured and protected. The term covers servers with – due to their functionality – a high risk for external attacks. DNS servers are a typical example.

The IT community also uses the term bastion hosts for jump hosts. The latter have a very focused purpose. Jump servers provide access to VMs (or good-old-on-prem servers) in a secure and otherwise inaccessible environment, e.g., from employee laptops or the internet.

Jump hosts are critical in the public cloud. In the cloud, admins accessing a VM always come from cloud-external networks – but backend VMs or middleware servers should not be accessible from the internet. Jump hosts are the solution. Admins connect from their laptops to the jump host; only from there can they reach backend VMs,  e.g., SSH or RDP.

Still, jump hosts are not helpful for all admin tasks in the cloud. They are necessary for IaaS workloads, i.e., when admins connect to VMs on the operating system level. That is not necessary for PaaS services such as Cosmos DB, for which customers do not have OS-level access.

Understanding Jump Hosts

Jump hosts promise the impossible: secure the admin access to VMs in the public cloud, which, due to the nature of the cloud, always comes from the internet or a less secure network. They achieve their goal by combining three measures:

  1. Reducing the attack surface of the host. Jump hosts have only one purpose – they are a host to “jump” to the real interesting ones. Thus, many components running on a server can be removed during the hardening, e.g., many unneeded drivers. Fewer components mean fewer components that might have vulnerabilities that attackers can exploit. Furthermore, servers support many protocols that a jump host does not need. Restricting protocols and ports is another measure to reduce the attack surface. A jump host has to access the backend VMs with RDP for Windows and SSH for Linux. All other ports should be blocked. Finally, IT organizations can ensure that admins install urgent patches immediately and first on the bastion hosts before patching any other system.
  2. Restrict the reachability or connectivity of the Jump Hosts. If the admin laptops are all in a workplace zone, only ingress traffic from such zones should be allowed for the bastion hosts, thereby locking out any attacks originating, e.g., from servers in high-risk countries.
  3. Defined point of control. Security operating centers have to prioritize the events they can investigate. When the operating system signals a “low” risk event, the SOC can investigate them for bastion hosts. However, they might not have enough security analysts to look for such events on ordinary VMs. Thus, bastion hosts imply a network topology with clear entry points, which eases prioritizing and monitoring security events.

In the end, this unique combination of measures and configurations makes the difference between an ordinary VM and a hardened jump host (hopefully) withstanding the most sophisticated attacks.

Beyond Networking: Admin Workstations and IAM in the Context of Jump Hosts

Jump hosts themselves must be set up adequately, but they are also part of an ecosystem. Especially the integration in the enterprise identity and access management is essential. If not integrated well, the integration becomes a potential breaking point that attackers could exploit. The leaver process for removing system access from employees leaving voluntarily – or involuntarily – the organization must work as well for jump hosts, and multi-factor authentication for any login to the jump host is essential.

Admin workstations or privileged users’ workstations are an additional concept that improves security with workplace-related measures. It contrasts today’s work-from-anywhere zeitgeist and has the potential to annoy admins. IT organizations might want to restrict from where admins can log on to jump hosts. An implementation option could be the country from where remote workers have access, or it might even be just a few IP addresses of dedicated workstations in selected office buildings. It all depends on the organization’s VMs, their criticality, and the company’s risk appetite.

The Azure Bastion Service

Setting up a bastion host does not require Harry Potter-like magic. Many IT organizations have built and managed them for many, many years. Nevertheless, Azure offers jump hosts as a managed (PaaS) service. Its name: Azure Bastion. Its configuration options are limited, as Figure 1 shows. The tier level (A) is relevant if scalability is essential (i.e., many admins work in parallel), whereas other options relate to authentication implementation variants (B).

Figure 1: Setting up an Azure Bastion Host

Azure Bastion’s pricing is pure horror compared with a single VM’s costs. Such a comparison lacks, however, two aspects. First, setting up and maintaining your own bastion host requires time – and engineering hours are not free. Second, applications and VMs can share a single Azure Bastion service instance by peering the bastion’s Vnet and the application Vnets. For sure, these bastion hosts become even more critical elements in an application landscape because they become a single door to many VMs.

To conclude: jump hosts are an essential pattern for secure access to backend VMs in the cloud. You can configure your own or use a service like Azure Bastion; what matters is a comprehensive and consequent implementation.

The Hub and Spoke Network Pattern

Ever wondered how large corporations design their networks in the cloud? The hub-and-spoke pattern is probably the most important to understand their on-prem and cloud network designs, no matter whether an IT department runs on GCP, AWS, Azure, or any other cloud provider.

Mesh is the “free love” vision transferred to enterprise network designs, whereas the hub-and-spoke pattern implements more of a harem concept. But to start with the big picture: The focus is not on individual applications. Network design looks at how to organize connectivity and isolation for networks with hundreds or even thousands of applications. These applications serve business needs, such as SAP or self-developed insurance solutions. The design must consider as well technical or security-related applications such as Web Application Firewalls, IAM services, Messaging Middleware, or Data Loss Prevention solutions.

Hub-and-Spoke vs Mesh Network

The first aspect is zoning. IT department group their resources. VMs belonging to an HR application might be separated from air traffic control systems. They are in two separate zones. Network design patterns define how such zones interact, i.e., which zones have connectivity and can interact directly with which other. When looking at concepts, two patterns are particularly important: the mesh network pattern and the hub-and-spoke pattern (Figure 1).

Figure 1: Hub-and-Spoke versus Mesh

A hub-and-spoke network is hierarchical. One zone is the hub. It connects with every other zone – the spokes. It is a classic 1-to-n relationship known from harems. Resources in two separate spokes zones always interact via the hub. A mesh network builds on the free-love-idea: every zone can interact with every other zone (and zones might forward traffic to other zones in the absence of direct connectivity).

Why Hub-and-Spoke Patterns are Popular

Mesh networks (and free love) cause a mess if relationships and connectivity are not tightly managed. In contrast, the hierarchical model of hub-and-spoke networks allows for centralized governance and operations of components and eases controlling the network traffic flow.

Routing all traffic to and from the internet through one hub zone eases control and security. In this zone, DDoS protection, the (network-) data-loss-prevention solution, and other critical internet-connectivity-related applications must run. Then, perimeter security is in place for the complete data center.

One dedicated zone with internet connectivity also eases setting up web application firewalls (WAFs), which usually require integration with an IAM solution. Having both in dedicated central zones is much easier than having WAFs in ten zones and IAM solutions in seven.

Centralizing components in a hub is useful beyond internet connectivity: (Azure or on-prem) Active Directories, messaging middleware, application performance monitoring, and many more benefit from centralization. This insight does not mean building one monolithic hub with all centralized applications. Enterprise-scale networks can have several hubs, e.g., one serving as a management zone with monitoring and another for internet connectivity (Figure 2).

Figure 2: Overlapping Hub Networks Example with an Internet-facing External Zone and an internal Management Zone e.g., for Monitoring

Grouping Criteria for Zoning

Zones are groups of (cloud) resources, e.g., VMs, isolated from other resources and VMs in other zones. The grouping criteria differ between organizations, companies, and departments. Typical grouping criteria are (Figure 2):

  • Applications or groups of applications forming one solution
  • Stages such as Production, Preproduction, Integration, Test, and Development.
  • Teams or departments managing the resources and potentially following different change management processes
  • Sensitivity of the data of applications
Figure 3: Typical Criteria for Zoning

Cloud Features for Implementing Zones

Cloud providers do not offer a “zone” or a “hub-and-spoke network” feature. They provide sophisticated building blocks for structuring workloads and networks. Tenants, Virtual Private Clouds (VPCs), and Subnets are features for organizing networks and resources hierarchically. AWS, Azure, GCP, and all the others provide routing tables for – well – routing. Access Control Lists and Network Security Groups (the exact names differ between the clouds) enable engineers to implement firewalls for blocking or allowing specific network traffic. The clouds come with Internet Gateways, NATs, etc. Everything is ready for you to implement effective and secure network designs. However, whether you do that and how many free-love-like connections you allow is up to you and all other network architects of the world.

PaaS Perimeter Security in Azure and GCP

With all the efficient and innovative Platform-as-a-Service (PaaS) services in the cloud world, a catastrophe is only one click away. An engineer wrongly configures a database or object storage service, and cybercriminals have access to all data from anywhere on the internet. Booz Allen Hamilton, WWE, Verizon Wireless, Accenture, the Pentagon: these are just some prominent companies and organizations that misconfigured their AWS S3 object storage and lost millions of data records. So, how can cloud security architects avert such catastrophes?

The article exemplifies typical but risky configuration options in Microsoft’s Azure and the Google Cloud Platform (GCP). Then, its focus shifts to Azure’s concepts of Private Endpoints and Private Links and to GPC Service Controls. Looking at the different features of the two sample public cloud providers allows for a better understanding of the various security risks and mitigation approaches when protecting PaaS services.

Basic PaaS Configurations

When creating PaaS service instances via the GUI, the cloud vendors usually suggest (also) security configuration options with a relaxed security level. Their motto: simple and easy to set up, every engineer trying out the cloud and a specific service should succeed. But such configurations come with risks that this section elaborates on in more detail.

In classic data centers, a solution can invoke internal web or microservices only if meeting two conditions:

  1. Authentication (and authorization), i.e., only specific applications, solutions, and users can invoke the service after verifying their identity and when they have the needed access rights and roles.
  2. Reachability of the service in the network: Networks are typically divided into different zones, separated by firewalls. Invoking services in different zones requires opening up connections.

PaaS service default configurations usually require authentication but come with limited network-level protection. By default, PaaS services belong to one zone: the worldwide internet, where everybody can reach everything.

Figure 1 illustrates the network security configurations when creating instances for two typical GCP PaaS services: Cloud Storage, Google’s object storage service, and managed SQL database instances. When engineers create a database service in GCP, they have to choose between a public and a private IP address (Figure 1, 1). A public IP means that everyone on the internet can connect to this service. If the authentication mechanisms are in place and configured correctly and if attackers cannot get access keys etc., this is a perfectly safe approach. However, it is a challenge to ensure that none of hundreds or thousands of engineers in a larger IT organization ever make a critical mistake. And indeed, Goole provides the option to restrict access to certain network zones to reduce the risk (Figure 1, 2).

Figure 1: GCP PaaS Services for storing data. Network security settings when creating SQL Server (left) and Cloud Storage instances (right)

When creating a Cloud Storage bucket, engineers must decide whether to enforce the prevention of public access to the data stored in this bucket. The challenges with any object storage are – be it in GCP, Azure, AWS, or any other cloud – contradicting network security needs for the two primary use cases.

The first use case for object storage is storing classic (internal) application data. An archiving system might store Pdf files, security solutions potentially video recordings that document who performed which command on a particular system. Such data must not be made available to the internet. The perfect security setting preventing for such an object storage service instance is “forbid all internet access.”

The second use case for object storage is storing and delivering websites, e.g., a web page with an interview text plus incorporated pictures. Everyone on the internet should be able to access the web pages and read the interview. There is no need for network firewalls or authentication mechanisms.

So, there are two highly relevant use cases, and one technology solves both needs and challenges. That is, usually, perfect, just not in this case. In this peculiar case, it is a security risk. When you configure the object storage for a bank’s know-your-customer documents by mistake as publicly accessible website storage, you might only notice when your documents appear for sale in the darknet.

Public IPs and the risk of misconfiguration is not a GCP specialty. Figure 2 presents a GUI mask for creating a Cosmos DB database service via the Azure portal. Two settings create public endpoints: “all networks” and “public endpoint (selected networks).” Especially in the case of “all networks,” anyone on the internet can reach the Cosmos service instance. In other words, access control misconfigurations can have catastrophic results.

To point out the situation clearly – and this is the same for GCP Cosmos DB or Azure SQL databases and many more database services in the cloud – there is no sensible reason why databases should have a public IP. Databases are backend systems. There is no point reaching them from outside the organization.

The screenshot in Figure 2 has a third option for Cosmos DB: Private Endpoints. The following section looks at the details.

Figure 2: Network security options when creating a Cosmos DB

Azure Private Endpoint and Link

Some time ago, Azure introduced Private Endpoints and Private Links. They provide an extra layer of security. Thanks to them, engineers can incorporate PaaS service instances (e.g., Cosmos databases) into a VNet and access PaaS services without going via public IPs. When creating a Cosmos Database Service instance with this option, engineers create a Private Endpoint in their VNet with a VNet-internal, private, non-public IP. The Private Endpoint points to the actual resource, e.g., a Cosmos Database, via a Private Link.

“Private Endpoint” is the third connectivity option in the example of creating a Cosmos service instance (Figure 3). When chosen, engineers can create and add a private endpoint. The Private Endpoint has a name – and the engineer specifies into which VNet Azure shall deploy the Private Endpoint.

Figure 3: Private Endpoint configuration option for Azure Cosmos DB

Figure 4 illustrates what happens in the background in the case of a private endpoint / private link connectivity (B) versus the traditional approach (A).

In addition to configuring Azure Private Endpoints and Private Links, engineers must be aware of and mitigate two more risks. First, Private Links and Private Endpoints are for themselves save, but the cloud architecture must ensure no firewalls are open on the resource itself (risk C). The benefit is that there is no need to open a firewall to make solutions work and components interact. Thus, forbidding opening ports gets feasible. Second, criminal employees might try to exfiltrate data. They could send company data to a personal Cosmos Database service instance controlled and owned by themselves as private persons (D). Cloud security architects can demand that all traffic to storage or database services goes via Azure Private Endpoints thanks to Private Endpoints and Private Links. Auditing and analyzing networks for exfiltration paths gets much more straightforward.

Figure 4: Classic PaaS Connectivity (A) versus Private Endpoint / Private Link (B). C and D illustrate remaining network security risks for Private Endpoint and Private LInks.

Before discussing Google’s real cool feature for PaaS perimeter protection, a final remark about Azure Private Links. Azure Private Link Service enables engineers to make their own services and resources available via Azure Private Endpoints. Thereby, they benefit from the same security features for their code that Microsoft relies on for protecting its Azure PaaS services.

GCP Perimeter Protection with VPC Service Controls

Google’s VPC Service Controls concept enables cloud security architects to build a perimeter-protected network zone composed of IaaS and (!) PaaS resources. A VPC Service Control definition comprises five main elements: projects, services in scope, accessible services, access level, and traffic exceptions.

The GCP projects of a VPC Service Control define the trust perimeter. These projects trust each other and can freely interact as defined by the network configurations. In contrast, applications in other VPC Service Control perimeters must not access the resources if not permitted explicitly.

The GCP Services part of a VPC Service Control definition specifies for which services the perimeter protection of the VPC Service Control applies. That is a crucial setting. If, for example, Cloud Storage is not part of the perimeter definition, engineers can easily transfer data in and out of the VPC Service Control perimeter. A note: Google adds the feature to more and more services, but it might not yet be available for all needed by a company. Thus, disabling unprotectable GCP services can e a necessity.

GCP Accessible Services add another nuance to perimeter definitions. The feature enables engineers to limit the GCP services, which resources can invoke within the Service Control perimeter.

As a result of a VPC Service Control definition, services respectively their callability fall into three categories:

  • Service instances of GCP services under VPC Service Control perimeter protection. They are only accessible from within the perimeter. Plus, they cannot invoke external service instances.
  • Service instances of GCP services without restriction. VMs within a VPC Service Control can connect to VPC-internal and external service instances. Plus, VPC external resources can (try to) connect to VPC-internal instances of this type.
  • Services blocked for use within a VPC Service Control (“GCP Accessible Services”) setting.

The GCP Access Level is an option for context-aware authentication and authorization. It is a new and upcoming approach requiring a detailed analysis worth a dedicated article.

A last core element is an option for defining exceptions, i.e., adding ingress and egress traffic rules allowing otherwise not allowed traffic into and out of the VPC Service Control. Thus, VMs from within one service parameter might get read access to Cloud Storage in a different service perimeter.

VPC Service Controls in the GCP world and the Azure Private Link/Private Endpoint help cloud security architects shield PaaS (and IaaS) service instances from the internet or other internal network zones. Their absoluteness – especially the exceptionally rigid VPC Service Controls – is what makes them so valuable. No one has to define, analyze, and manage thousands of rules and exceptions to understand and ensure the overall security posture of a network consisting of IaaS and PaaS resources. Instead, PaaS security becomes (nearly) a child’s play.

Network Security for Cloud IaaS

Commonalities and differences between securing VM-based Workloads on Microsoft Azure and the Google Cloud Platform (GCP)

When moving from an on-premises data center to the cloud, architecting and engineering a secure network is the first challenge. The days of buying hardware and wiring devices are over. Instead, cloud network engineers configure the network with templates and web GUIs. A secure network setup reflects three needs:

  1. Workload structuring and separation, i.e., the high-level network design
  2. Fine-grain connectivity and security controls
  3. Enabling intra- and inter-company interactions between systems, applications, and components

For these three areas, we answer the following questions. First, which network architectural features do cloud vendors offer to reach these aims? What are the commonalities and differences between cloud providers such as Microsoft Azure or Google’s GCP? The latter helps architects to understand underlying principles rather than just product features.

The High-Level Network Design for Clouds

Four layers structure the cloud network security (Figure 1), with the second-highest being the most intuitive to understand. This second-highest layer corresponds to classic, simple on-prem networks. An IP range constitutes a network or network zone and gets a name and identifier. It is a moment of creation: let there be a network with the IP range 10.0.0.0 to 10.15.255.255 and call it “production environment headquarters.” In general, network architects should choose addresses from the private IP range, i.e., from 10.0.0.0 to 10.255.255.255, 172.16.0.0 to 172.31.255.255, or 192.168.0.0 to 192.168.255.255.

Figure 1: Core Cloud Network Security Layers for Organizing VM Workloads

Zoning concepts typically reflect one or more of the following dimensions to structure the network landscape and workloads:

  • Geographical locations: Germany, Switzerland, Singapore, and China – or New York, Boston, San Francisco
  • Stages, for example, production, preproduction, test, and development
  • Business lines, e.g., investment banking, retail banking, corporate banking, private banking, or wealth management
  • Data sensitivity classes such as secret, confidential, internal, or public

IT departments subdivide network zones into subnets, each taking over a subset of the zone’s IP range. A zone with IP range 10.0.0.0 to 10.15.255.255, for example, cloud have two subnets: 10.0.0.0 to 10.0.255.255 and 10.4.0.0 to 10.4.63.255. Subnets allow for finer granular structuring.

Zoning is a complex task – and that is why cloud security architects have to support the design process. Should all VMs of an application reside in one subnet – or all VMs belonging to the same application or solution cluster? Should frontend and backend components reside in one subnet, or should they be in entirely different zones? Security architecture is one (important) stakeholder. Network architecture and business and enterprise architecture have a say as well.

Implementing High-Level Zoning Concepts in Azure

In Azure, VNets and Subnets are the features for implementing zones and subnets. A VNet’s IP range is coherent. IP addresses within a VNet are unique, though different VNets can have overlapping IP addresses. Within VNet A with all its subnets, there can be only one VM with IP 10.10.10.10. However, if an IT department has two VNets Z1 and Z2, both can contain one VM with IP 10.10.10.10. Furthermore, all resources of a VNet, such as VMs, reside in one region.

A fundamental security aspect is the connectivity between VNets and Subnets. Which VMs can talk with each other by default, which ones not, and which kind of shielding can engineers implement? Azure isolates VNets with their subnets and VMs from each other. Without explicit configuration, a VM in one VNet cannot connect to a VM in a different VNet. In contrast, VMs within a VNet can contact each other by default, even if residing in different Subnets. So, placing VMs in two subnets of the same VNet does not provide any extra level of security without additional (fine-granular level) measures we discuss later.

Implementing High-Level Zoning Concepts in GCP

VPC Networks and Subnets are GCP’s corresponding concepts for structuring a network and its IP range. VMs placed in a VPC Network, whether in the same or different GCP Subnets, can reach every other VM within the VPC. GCP allows VPCs to have overlapping IP ranges, as Figure 2 illustrates. In the example, there are VPC Networks with the IP address ranges 10.0.0.0/16 and one with 10.0.0.0/20, which obviously overlap.

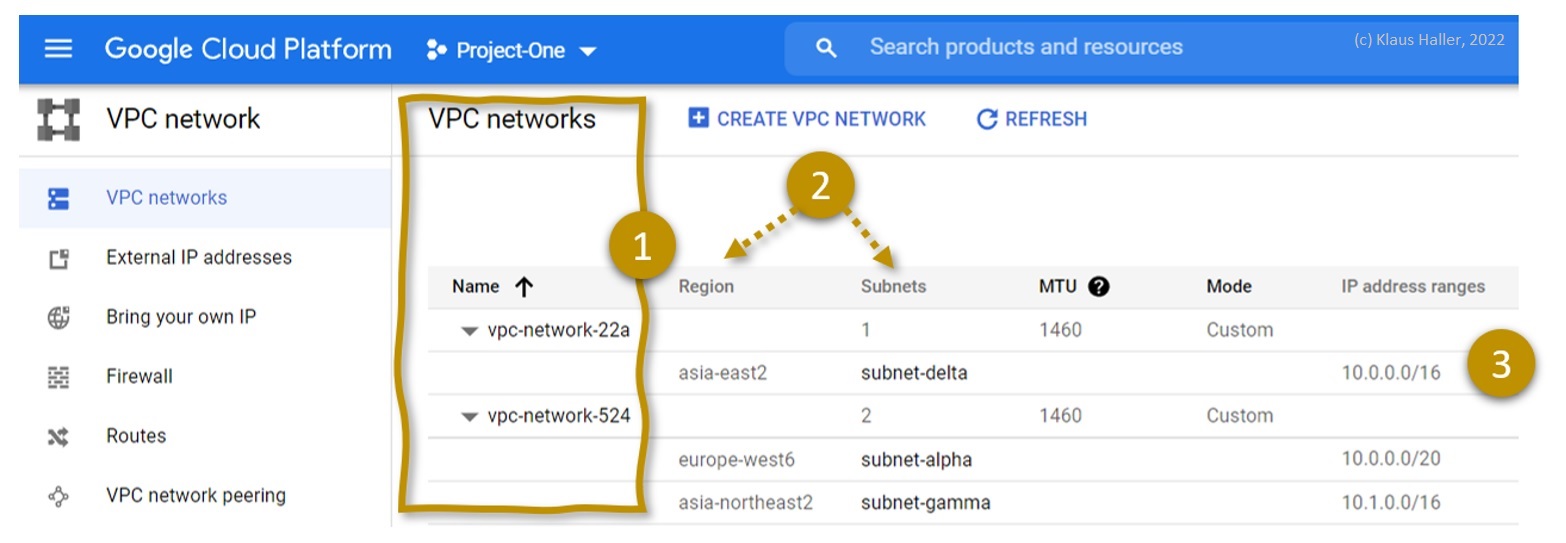

Figure 2: VPC Network Overview (1), Subnets belonging to the VPCs and their region (2) plus the associated IP ranges (3)

A GCP Subnet is a feature preventing chaos in large VPC Networks. A Subnet takes over parts of the IP range of the VPC Network to which it belongs. All IPs are unique within a Subnet, implying that Subnet IP ranges do not overlap. In GCP, Subnets also have a geographical aspect. Resources within a GCP Subnet reside in one geographic GCP region.

The Management Layers

The need for a sophisticated management layer for organizing hundreds or more VNets or VPC Networks is evident when looking at the companies and customers the cloud vendors target. They do not want (only) small companies or startups paying for 5 or 10 VMs. They want the big fishes as well: corporations listed in the Swiss Market Index, the Eurostoxx 50, etc. These companies need thousands or ten-thousands of VMs. Two layers – zones such as VNets or VPCs plus Subnets – are insufficient for large clouds. Thus, the cloud providers introduced additional management layers on top.

When trying out the clouds the first time, many get the impression that accounts are the highest ordering principle, typically represented by an email address and an additional name or identifier. But cloud providers offer features for combining accounts to GPC Organizations in the Google world and Azure Management Groups for Microsoft. They help for governance and billing purposes or identities. These features help companies for which the move to the cloud was a decentral (chaotic) grass-root movement – or when company networks and cloud infrastructures evolve over the years due to mergers and acquisitions.

Below an Azure Subscription, aka an account, Microsoft provides the concept of Resource Groups, into which all VMs, VNets, and all other components are placed. Google has the concept of GCP Projects, which corresponds to the Azure Resource Groups. But there is one big difference: Google’s idea of GCP Folders, a tree-like flexible structure with multiple layers and nesting. GCP folders help in modeling and structuring workloads based on various dimensions such as business units, geographic regions, or stages with ease (Figure 3). In contrast, Azure has a rigid 3-levels model: organization, subscription, resource group.

Figure 3: A Closer Look on GCP’s Network Security Layers

The management layers typically provide options to enforce and monitor configurations (“policies”). However, here we focus on directly relevant network security configuration options. In this context, GCP has one related feature: Hierarchical Firewall Policies. GCP allows associating organizations and folders with such policies, which enforce specific firewall rules for all folders and VMs hierarchically lower (or to delegate decisions to lower levels) or restricting the applicability of rules to specific VMs by specifying target networks or service accounts.

Fine-Granular Access Control for Azure

Microsoft and Google follow different philosophies regarding fine-granular access control (and firewalls) within a VNet or VPC Network. Azure provides more – and more rigid – concepts making it essential for engineers to understand the interplay. GCP has fewer, though partially more general or flexible features.

The Azure World

Azure enables architects to secure networks with three concepts: network security groups, application security groups, and firewalls.

A network security group (NSG) is a firewall attached to Azure Subnets or individual VMs (specifically: a VM’s network interface), enabling engineers to control connectivity even within Azure Subnets. An NSG defines which IP addresses outside the Azure Subnet can reach which inside IP address – and vice versa. The rules can apply to individual IPs, groups of IPs, or the complete Subnet. If VMs serve different purposes – frontend, backend, or database servers – NSGs allow configuring their exposure to other subnets or the global internet differently, based on exact necessities and the risk appetite.

Application Security Group (ASG) are a refinement of NSGs and overcome their biggest downside: IP-based rules. IP addresses might change and/or if the number of frontend servers handling customer requests increases, all relevant rules in the NSG rule sets require a modification.

An ASG is a set of VMs with a dedicated tag. They are not (!) Identified based on an IP. Instead of opening the HTTPS port to 10.5.10.26 in a pure NSG setup, ASGs allow opening the HTPPS port for all VMs of the subnet belonging to the ASG “asg-frontend-vms”. The ASG might contain a VM with the IP 10.5.10.26, but any other VM within the subnet would be governed by the same rules as soon, and as long the VM is part of the ASG.

Figure 4 provides an example of an ASG – “asg-frontend-api-servers” – on the left. The sample VM on the right belongs to precisely one ASG: “asg-frontend-api-servers”.

Figure 4: An Application Security Group (ASG) example (left) and how to associate a VM with the ASG.in the Azure Portal

An ASG impacts the VMs associated with it once the ASG becomes part of an NSG. Suppose an NSG allows HTTPS traffic to a VM handling incoming API requests. Then, rather than explicitly listing IPs in the NSG (and updating them when starting or stopping VMs), the engineers create an ASG and add the relevant VMs to this ASG.

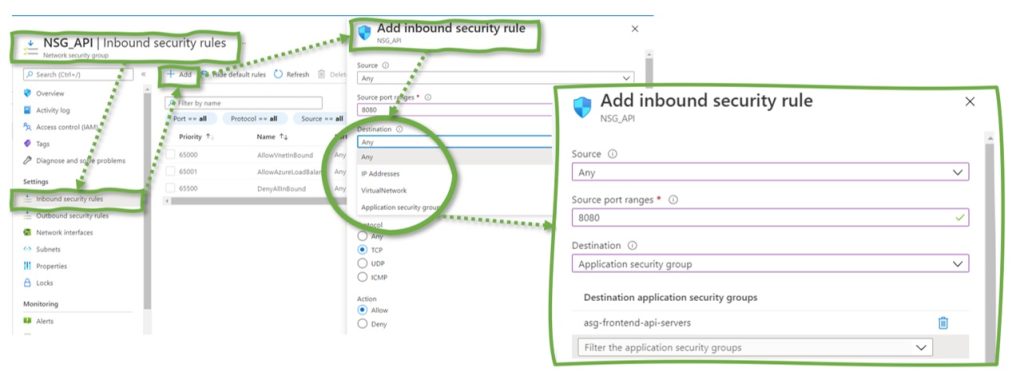

Figure 5: Integrating an ASG in an NSG rule.

In addition to VNets, Subnets, Network Security Groups, and Application Security Groups, Azure also allows configuring a dedicated security service, Azure Firewall. Such a firewall helps block unwanted traffic. It is a component typically placed at the perimeter between company VNets and the global internet. In contrast, VNets, Subnets, NSGs, and ASGs help control the company-internal network traffic.

The various components and features might be overwhelming when looked at the first time – and seem to be overlapping. That’s one way to see it. The other way to look at all these features is that managers and architects can achieve the same goal with overlapping features – and thus share responsibilities between teams more efficiently. A high level of network security when going live is necessary, but it is not enough. IT departments have to manage and maintain all network components to stay on the same security level in the years to come. More sophisticated and partially overlapping features make the work distribution more manageable.

Fine-Granular Access Control for GCP

NSGs on the Subnets and the VMs level together with ASGs – Azure provides various options for fine-granular connectivity configuration. In contrast, GCP provides firewalls (only) on the VPC level. Rules applying only to one VM are part of the VPC firewall rulesets. This minor technical finesse impacts network or firewall processes in IT organizations. Rules on the VPC level favor central firewall management, making it more challenging to delegate (some) firewall rule decisions to individual application teams.

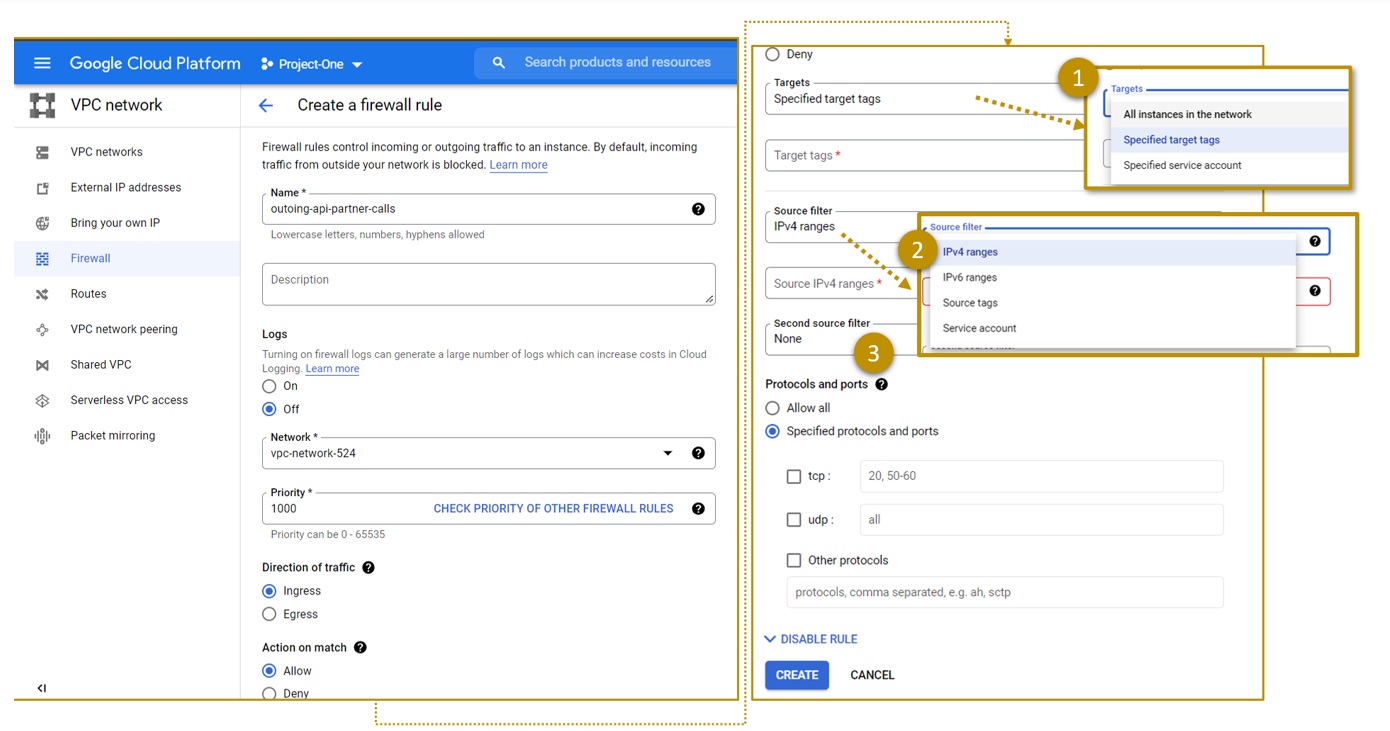

Figure 6 illustrates options for defining VPC Firewall Rules. A rule can apply to all VMs of a VPC Network. It can apply to specifically tagged VMs (like the ASG concept in Azure) or VM with specific service accounts. The latter is a concept not found in Azure. When defining firewall rules, architects can configure the applicability further related to where the network traffic comes from based on IP ranges, source tags, or a service account within the same VPC.

To sum things up: firewall rules and connectivity in GCP and Azure provide different concepts. The result: different setups and organizational approaches. Just one final warning for GCP: The GCP portal presents default rules for opening SSH, ICMP, or even all ingress traffic. These rules simplify the first steps in GCP for newbies – and might result in risky configurations.

Figure 6: Configuring VPC network Firewall Rules in Google’s GCP

Peering

By default, VMs in different VNets and VPC Networks cannot communicate. However, there are solutions for inter-zone communication – and they do not require traffic via the internet: Azure VNet Peering and Google Cloud VPC Network Peering.

Suppose one zone has the IP range 10.0.0.0 to 10.0.255.255 and a second one 10.4.0.0 to 10.4.0.255, VMs, VMs can interact easily. No colliding IP addresses cause issues when determining an actual target VM for traffic. However, why should cloud architects peer zones, thereby allowing communications between VMs placed in two zones to isolate the workloads?

Peering is not beneficial for two-zone networks but for networks with many. GCP, for example,  allows peering VPC Networks of the same or different GCP Projects. The VPC Networks can even belong to different GCP Organizations. VMs in peered VPC Networks can communicate with each other if not prevented by firewall rules. The twist is the non-transitive nature of peering. Suppose three VMs – VM1, VM2, and VM3 – are in three different VPC Networks: Z1, Z2, and Z3. Peering Z1 and Z2 plus Z2 and Z3 enables the communication between VM1 and VM2 and between VM2 and VM3, but not between VM1 and VM3. Non-transitive peering is vital when setting up typical hub-and-spoke network designs (Figure 7).

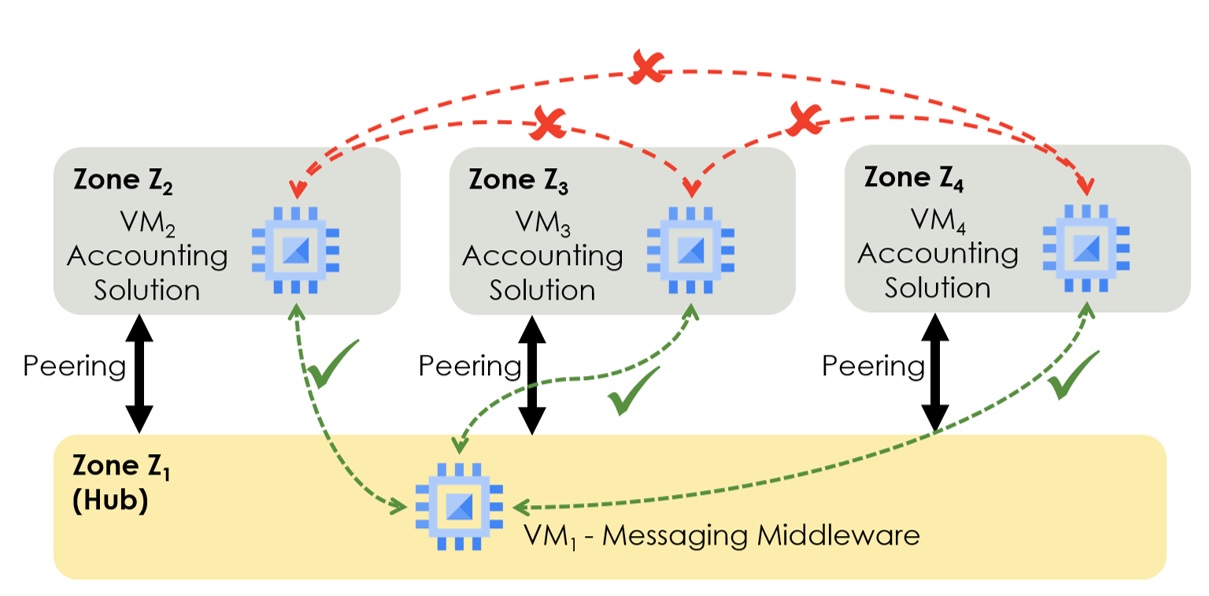

Figure 7: Non-Transitive Peering in GCP – Foundation for Hub-and-Spoke Network Designs

VNet Peering in Azure comes with different features and two main configuration options:

  • Enabling inbound and/or outbound traffic separately – not just allowing or disabling bidirectional traffic as in GCP
  • Restricting or approving traffic not originating in the peered VNet, also a feature not available in GCP

Peering is a simple yet powerful concept. It helps enable and control company-internal network communications, especially for setting up zones hosting communication middleware or management components.

Connecting VMs and the Internet

Public IPs for VMs are evil; this is the first message a security architect should hammer into all engineers’ minds. Vulnerabilities on the VM or application layers or simple misconfigurations are potential entry doors for attackers. However, locking up all VMs is also not possible. Admins cannot plugin keyboards to VMs to administer them. They come via the network as well.

The solution? Intermediate components or services that forward only parts of the network traffic (e.g., only TCP while blocking UDP traffic) and potentially even inspect the traffic. In particular, the following components and services are relevant:

  • Network Address Translation (NAT) Services such as the GCP Cloud NAT or Azure Virtual Network NAT. They allow VMs without public IPs to invoke services on the internet without exposing the VMs to external attackers.
  • Load Balancers such as the Microsoft Azure Load Balancer or Google’s Cloud Load Balancer. Their primary purpose is to distribute high loads to multiple backend VMs, hiding this fact for the invoking applications. At the same time, a load balancer reduces the attack surface, first by preventing direct access to VMs and, second, by limiting the traffic that gets through, e.g., to the HTTP(S) protocol.
  • Web Application Firewalls restrict even the content of http(s) requests, preventing, e.g., attacks with malformed invocations.
  • Azure Bastion allows admins to connect to and manage VMs without publicly exposing a VM with an IP. It works as follows: administrators connect first to the Azure portal. From there, the bastion host provides access to the VMs. A bastion host is a hardened server, making it less likely that (unneeded) components potentially have security issues.

These services are worth more profound analysis. Plus, for some cases, 3rd party solutions are an option, not only the ones from the cloud vendors. But all this is another long story, as is protecting VMs and their workloads against malware and other attacks.

To conclude, Microsoft Azure and Google’s GCP provide similar yet different features for creating and securing networks. Engineers aiming at getting applications to run on VMs benefit from their similarity. In contrast, security architects have a different perspective. They do not want to open up network connections. They must close the obvious and hidden wholes in the network design. For them, it is essential to understand all these little features and details where GCP and Azure – or any other public cloud – differ. It is less searching for easter eggs on a sunny day in spring. It is more isolating and avoiding mines in challenging terrain or stormy sea.
